USB3.0 Electronic Eyepiece with IMX415 Sensor for Telescopes

Transform your telescope into a powerful digital imaging system with this USB3.0 electronic eyepiece. Designed for beginners and hobby astronomers, it delivers smooth, high-resolution views of the Moon, planets and bright celestial objects straight to your computer or smartphone.

Key Features

• 8MP CMOS sensor for crisp, detailed astronomical imaging

• High-speed USB3.0 connection for smoother video capture and real-time viewing

• Dark-light compensation improves clarity in low-light conditions

• 1.25" eyepiece design fits most standard telescopes

• Up to 30FPS at 1080p for fluid planetary and lunar recordings

• Ideal for beginners wanting easy, plug-and-play astrophotography

• Works with popular software across Windows, Mac, Linux and Android

• Water-resistant IPX4 rating for added durability during outdoor observing

Specifications

• Sensor: 1/3.2" Colour CMOS (IMX415)

• Resolution: 8MP (3264 × 2448)

• Frame Rate: 15FPS (3264 × 2448), 30FPS (1920 × 1080)

• Pixel Size: 1.4μm × 1.4μm

• Exposure Time: 15ms–1000ms

• Gain: 0–120

• Shutter: Electronic rolling shutter

• Interface: USB3.0, UVC protocol

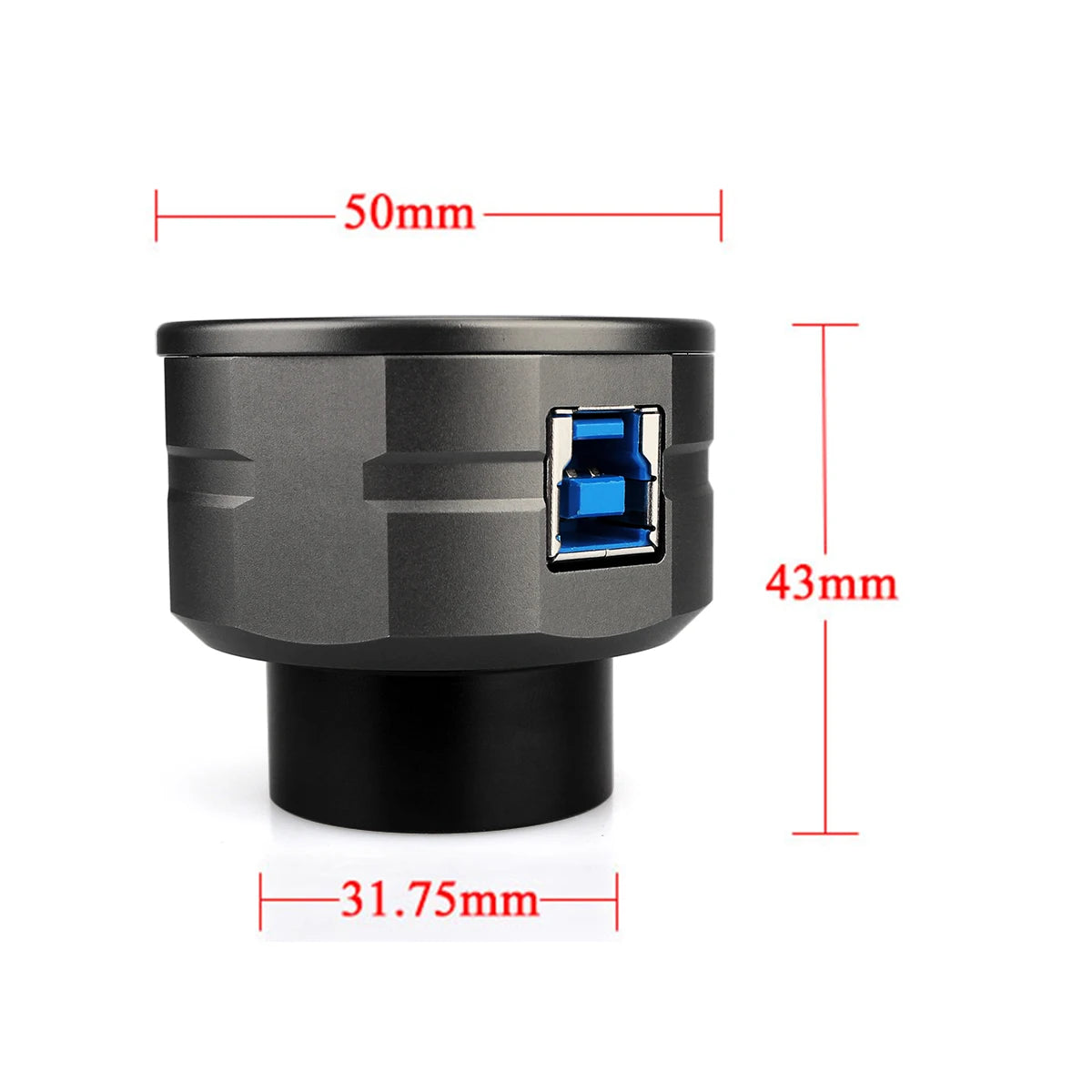

• Eyepiece Diameter: 1.25"

• Material: Metal

• Power Consumption: 230mA @ 5V

• Operating Temperature: 0°C–50°C

• Size (Package): 160 × 70 × 130 mm

• Water Resistance: IPX4

• Compatible OS: Windows, Mac, Linux, Android

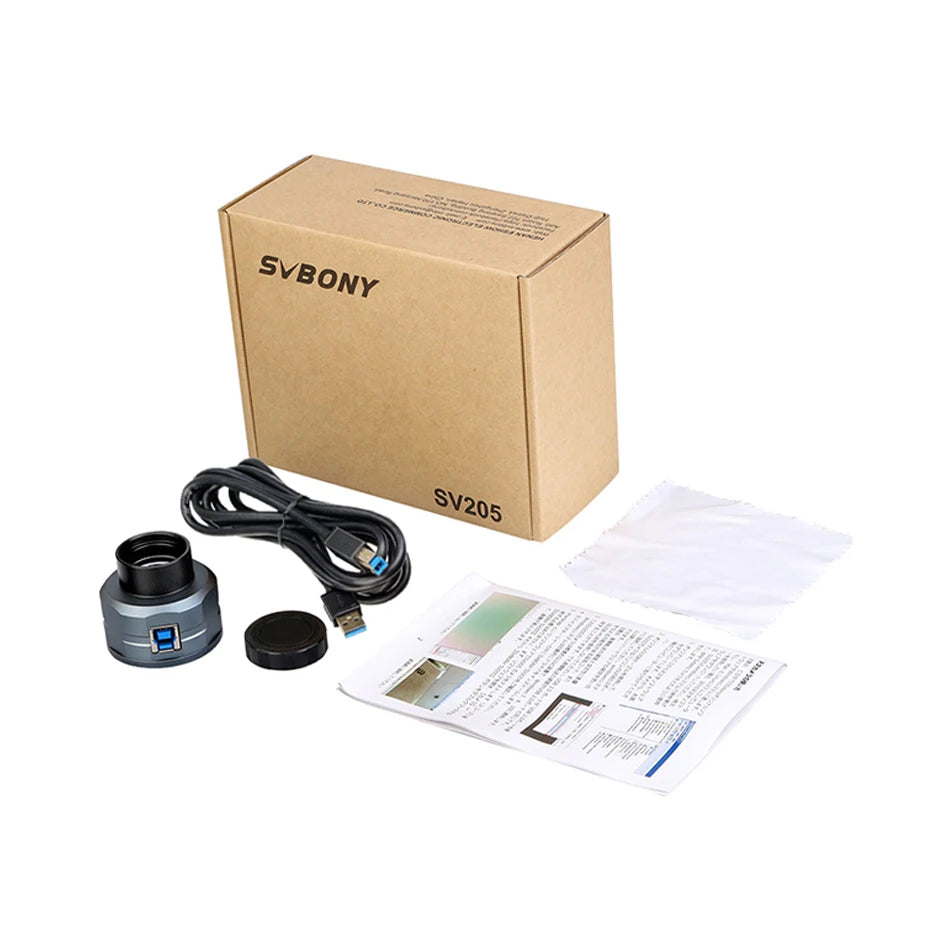

Package Contents

• SV205 Camera

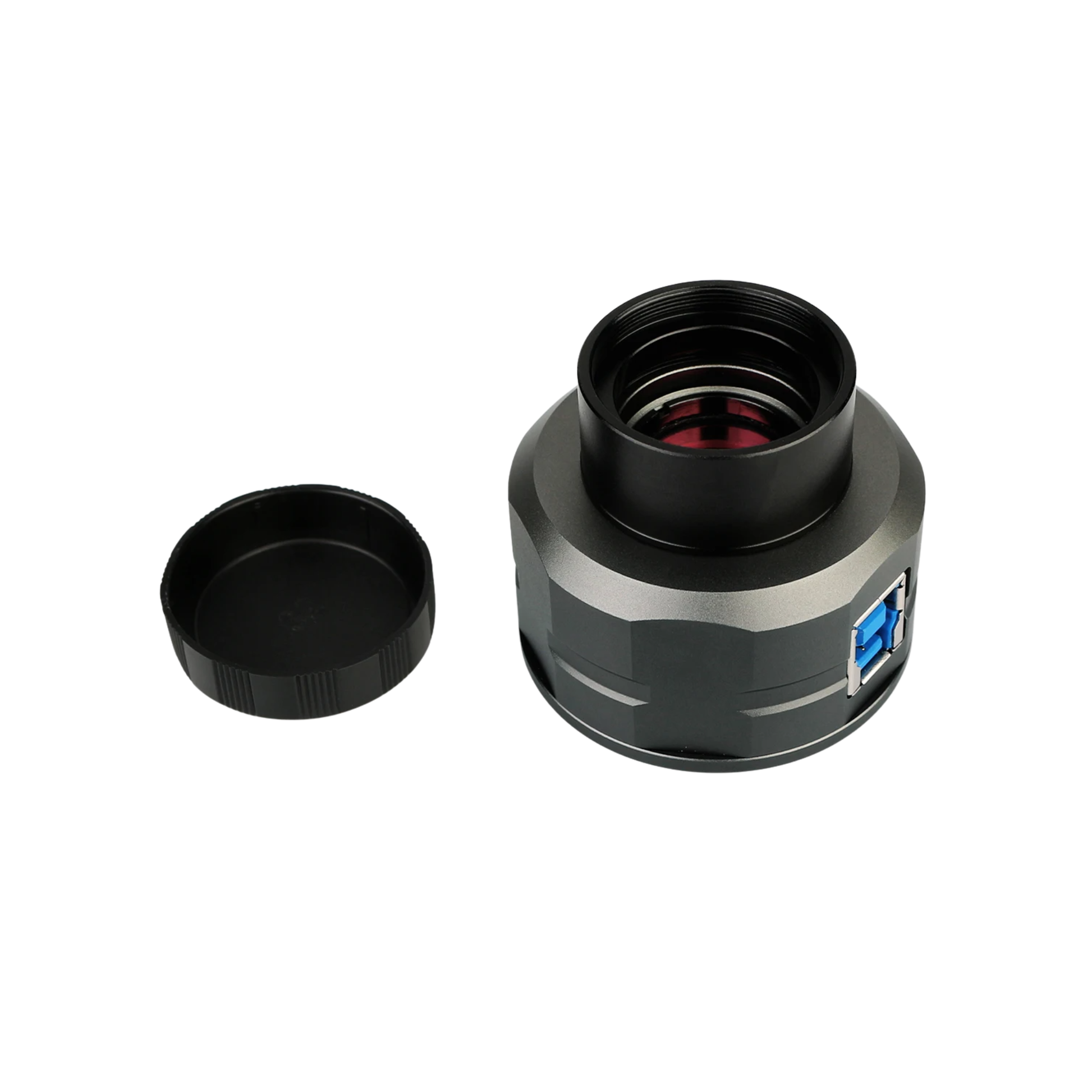

• 1.25" Dust Cover

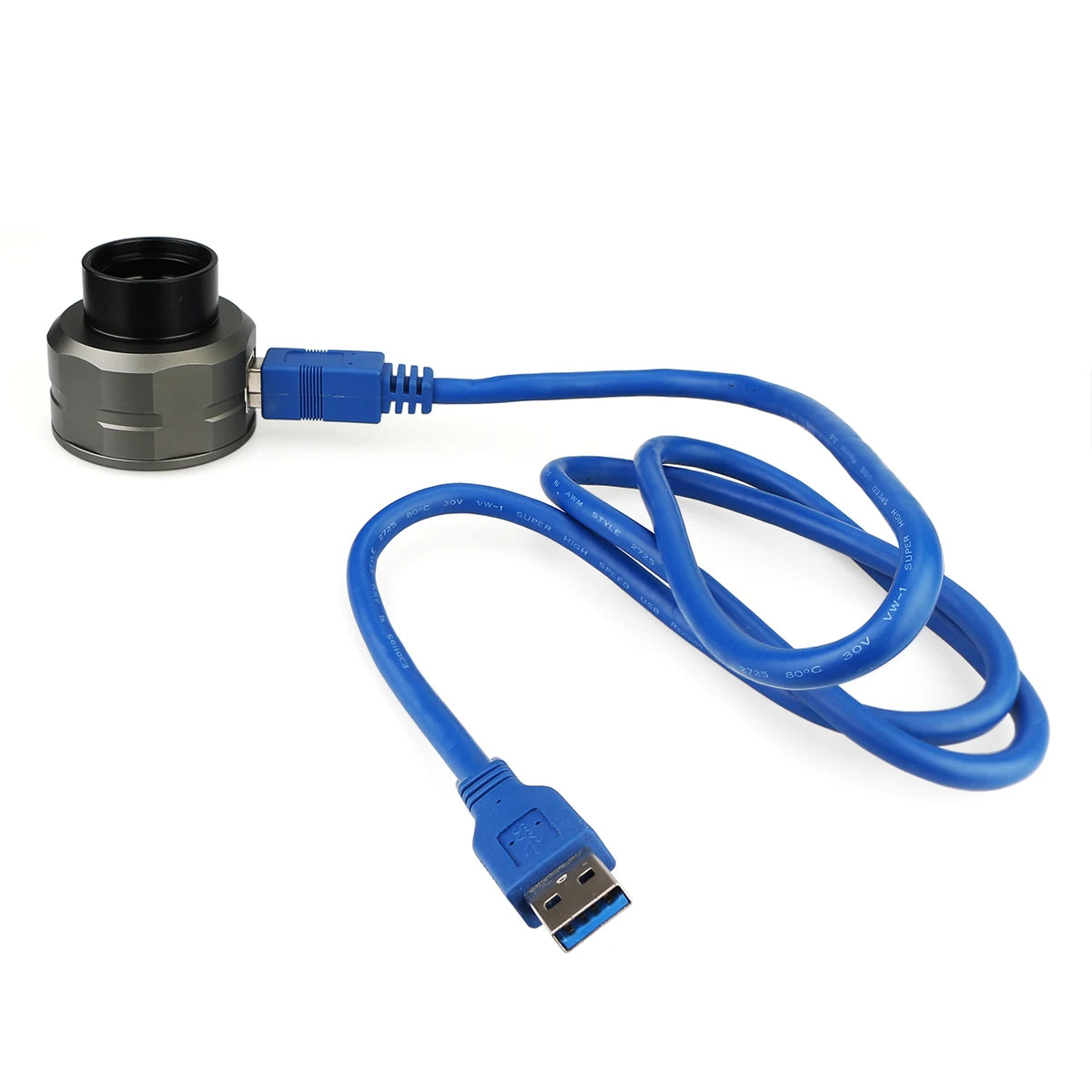

• 1.8m USB3.0 Cable

• Cleaning Cloth

• User Instructions

What Makes This a Smart Buy:
This electronic eyepiece brings high-quality imaging and smooth, real-time viewing to your existing telescope without the cost of a full astrophotography setup. With fast USB3.0 performance and an 8MP sensor, it’s a great-value upgrade for beginners wanting clearer, brighter planetary and lunar images.
