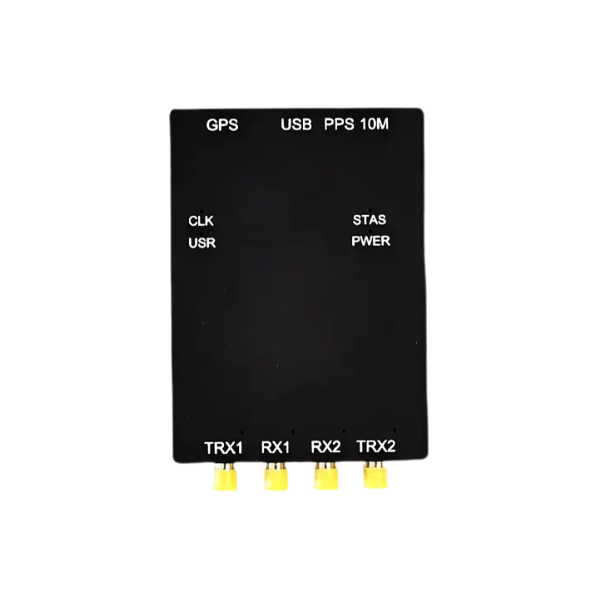

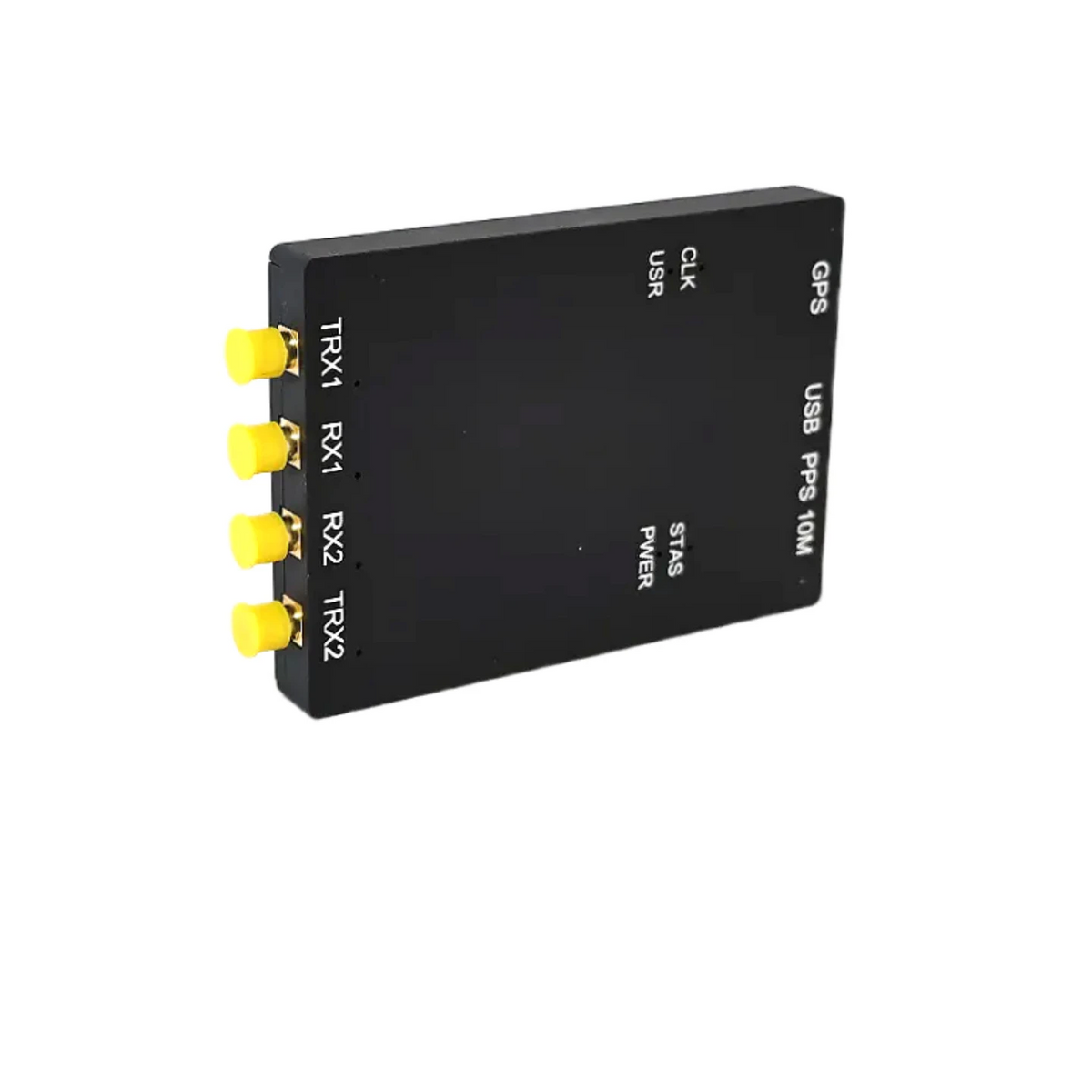

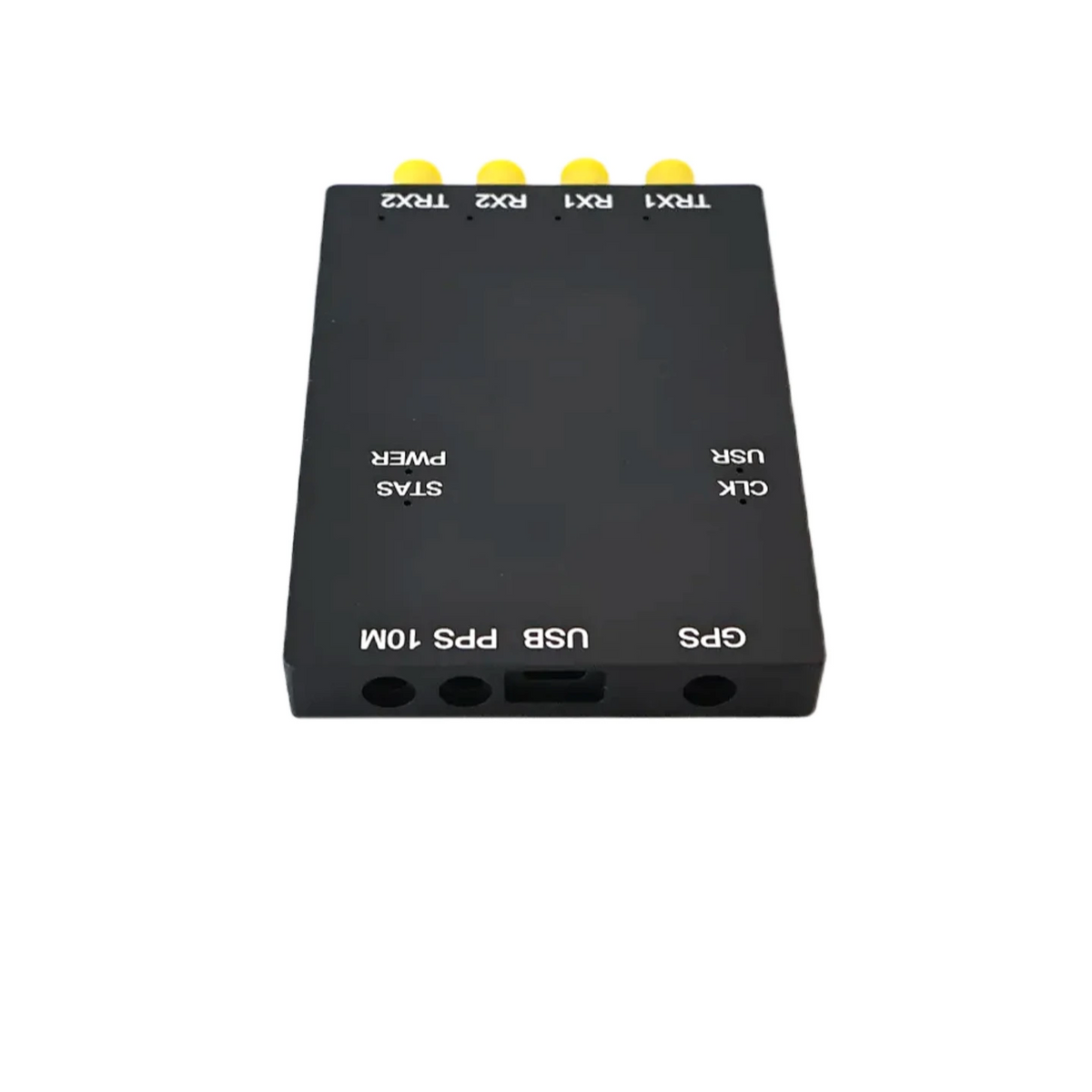

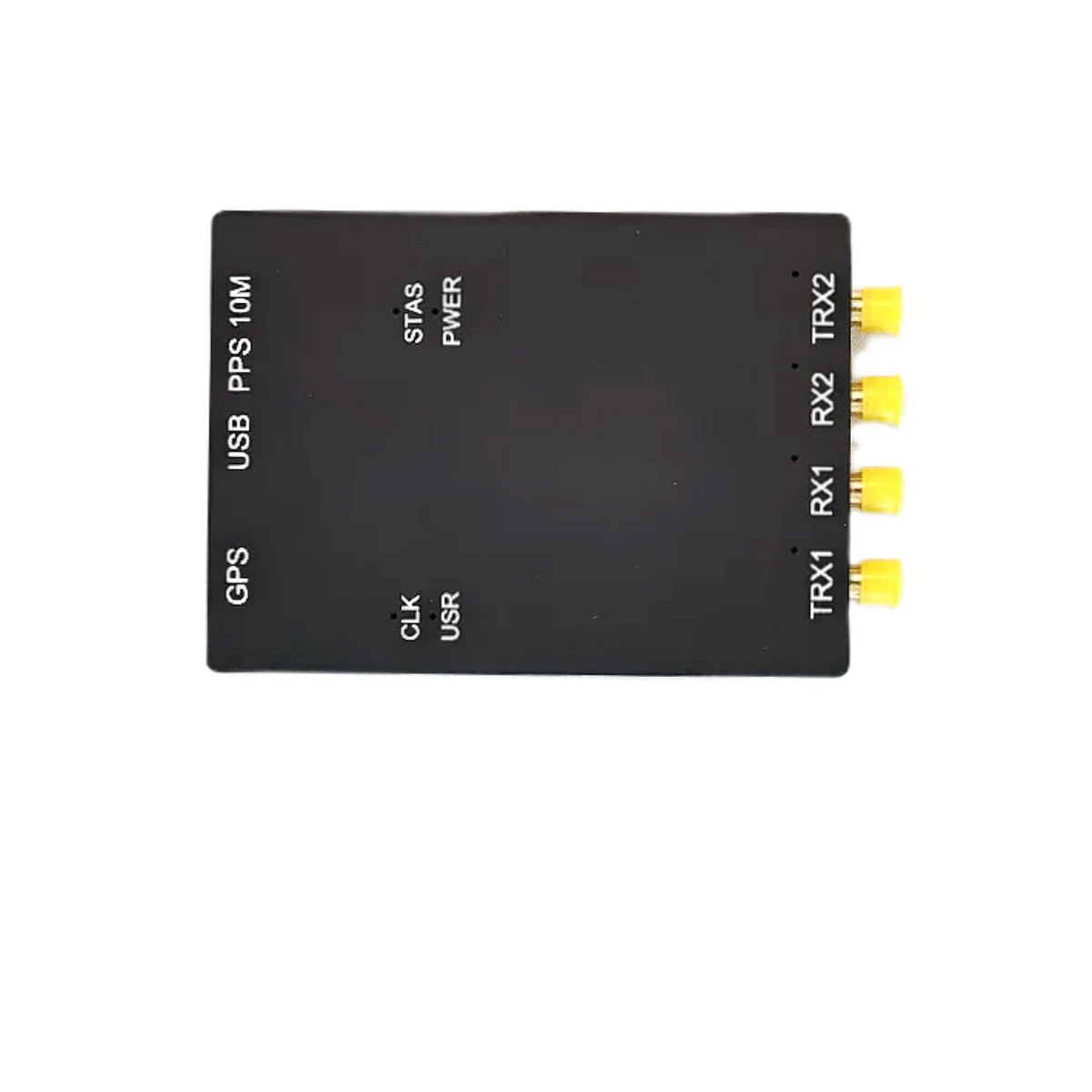

USRP B210 SDR Development Board AD9361 USB 3.0 Type-C

Explore software-defined radio development with a compact SDR board designed for education, experimentation and advanced RF projects. With USB 3.0 Type-C connectivity, wideband transmission and multiple timing interfaces, it provides a flexible platform for SDR development and testing.

Key Features

• Wideband SDR Performance: Supports up to 56MHz real-time transmission bandwidth via USB 3.0 Type-C
• AD9361 RF Front End: Designed for flexible software-defined radio applications with transmit and receive capabilities
• Multiple RF Interfaces: Provides TRX1, TRX2, RX1 and RX2 SMA interfaces for versatile signal connections
• Precision Timing Support: Supports external PPS and 10MHz reference inputs via MMCX interfaces
• Onboard GPS Module: Includes GPS functionality that can provide PPS timing when the GPS module is locked
• Compact Design: Measures just 70 x 97 x 11.5mm for convenient integration into development setups
• Development Ready: Supports Vivado development and is designed to retain key features of the original B210 platform
• Status Indicators: Dedicated LEDs provide power, firmware, PPS, transmit and receive status information
• JTAG & GPIO Expansion: FPC connector provides access to JTAG debugging and external expansion GPIO
• Versatile Applications: Suitable for SDR education, RF experimentation, signal development and learning projects

Specifications

• Product Type: SDR Development Board
• Model: USRP B210 AD9361
• RF Chip: AD9361
• Compatible With: Software-Defined Radio (SDR)
• Interface: USB 3.0 Type-C
• Maximum Real-Time Transmission Bandwidth: 56MHz
• Timing Inputs: PPS, 10MHz reference
• GPS: Onboard GPS module with MMCX antenna input
• RF Interfaces: 2 x TRX, 2 x RX via SMA
• PPS Interface: MMCX
• 10MHz Interface: MMCX
• Expansion: FPC JTAG debugging and GPIO connector
• Dimensions: 70 x 97 x 11.5mm
• Battery: Not included
• Typical Application: Education and learning, SDR development and RF experimentation
• Power/Data Connection: USB Type-C

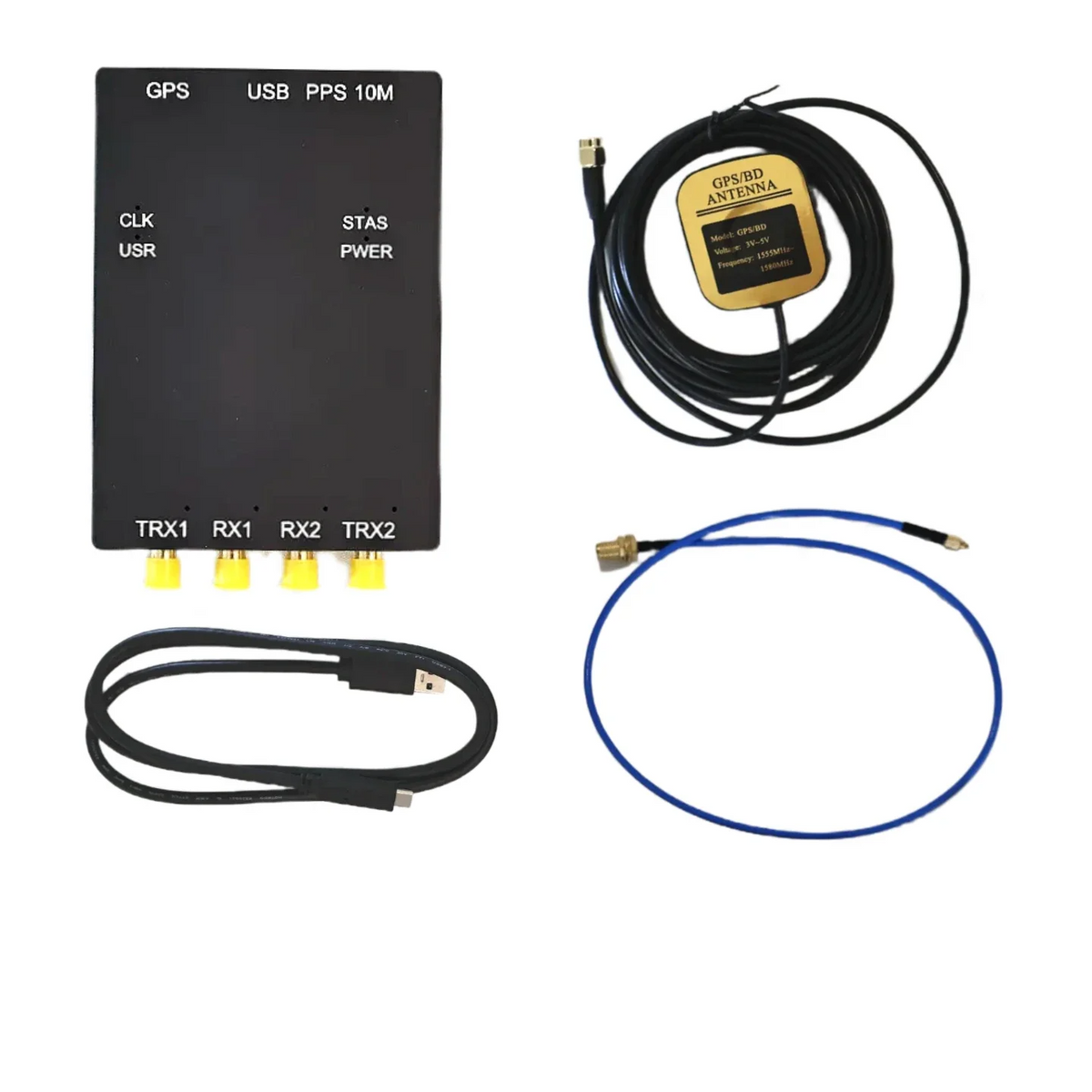

Package Contents

• 1 x SDR Development Board
• 1 x USB to DC Cable

What Makes This a Smart Buy:
A compact and versatile platform for SDR development, RF experimentation and hands-on learning, with high-speed USB connectivity and flexible timing options. Its multiple RF ports, onboard GPS and expansion interfaces make it a practical choice for a wide range of development projects.
