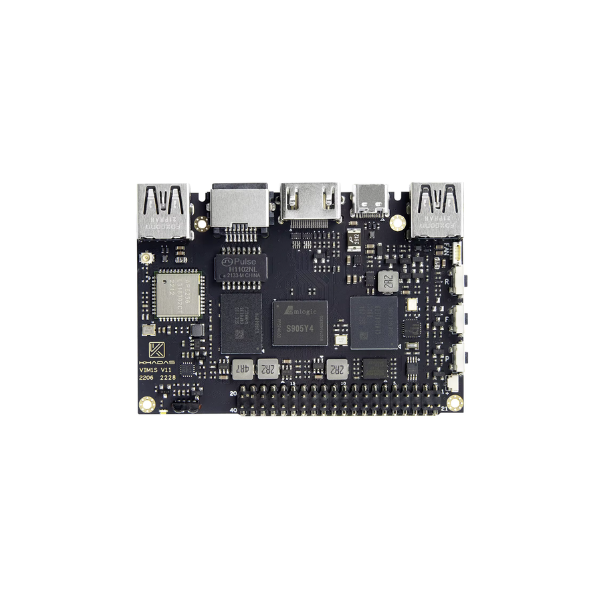

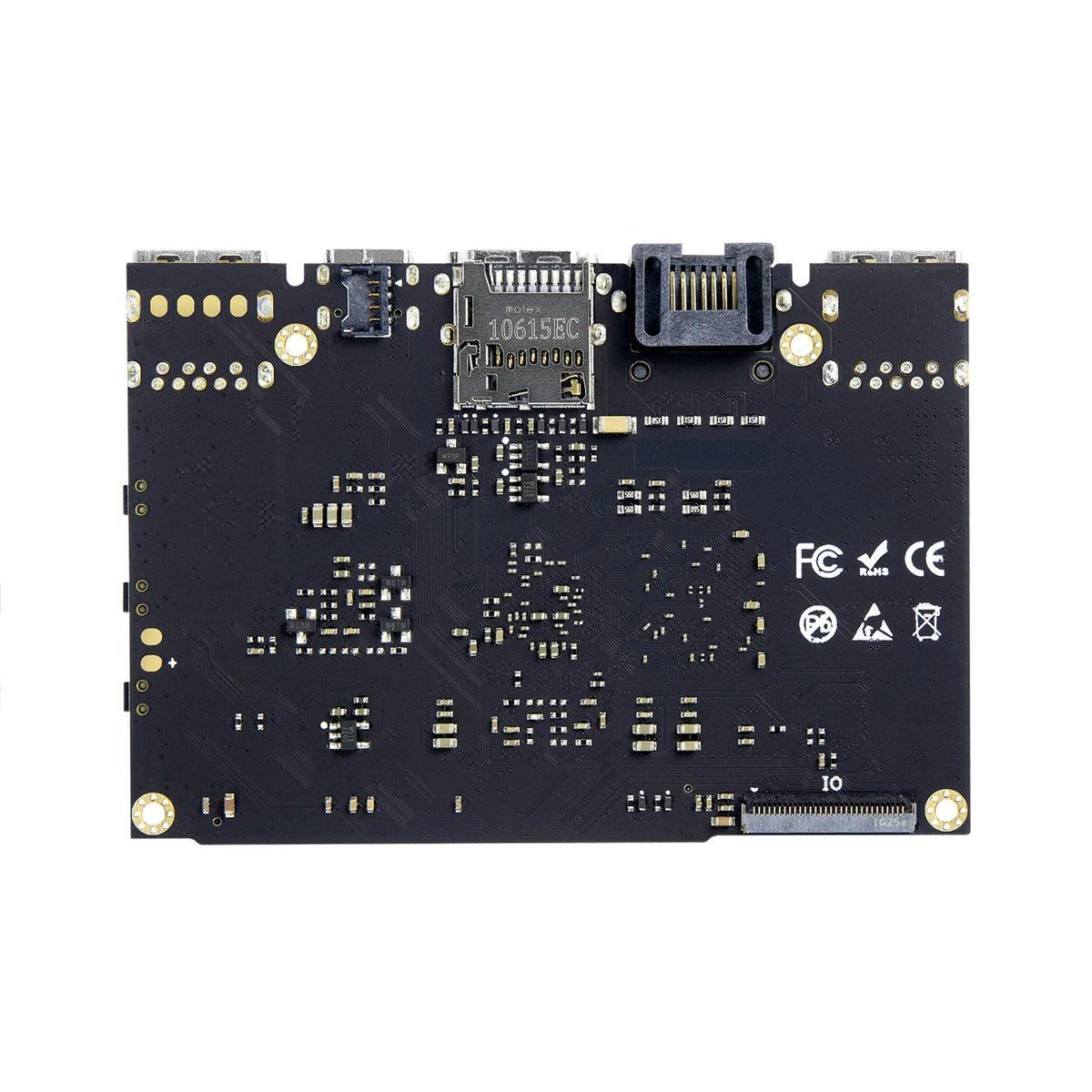

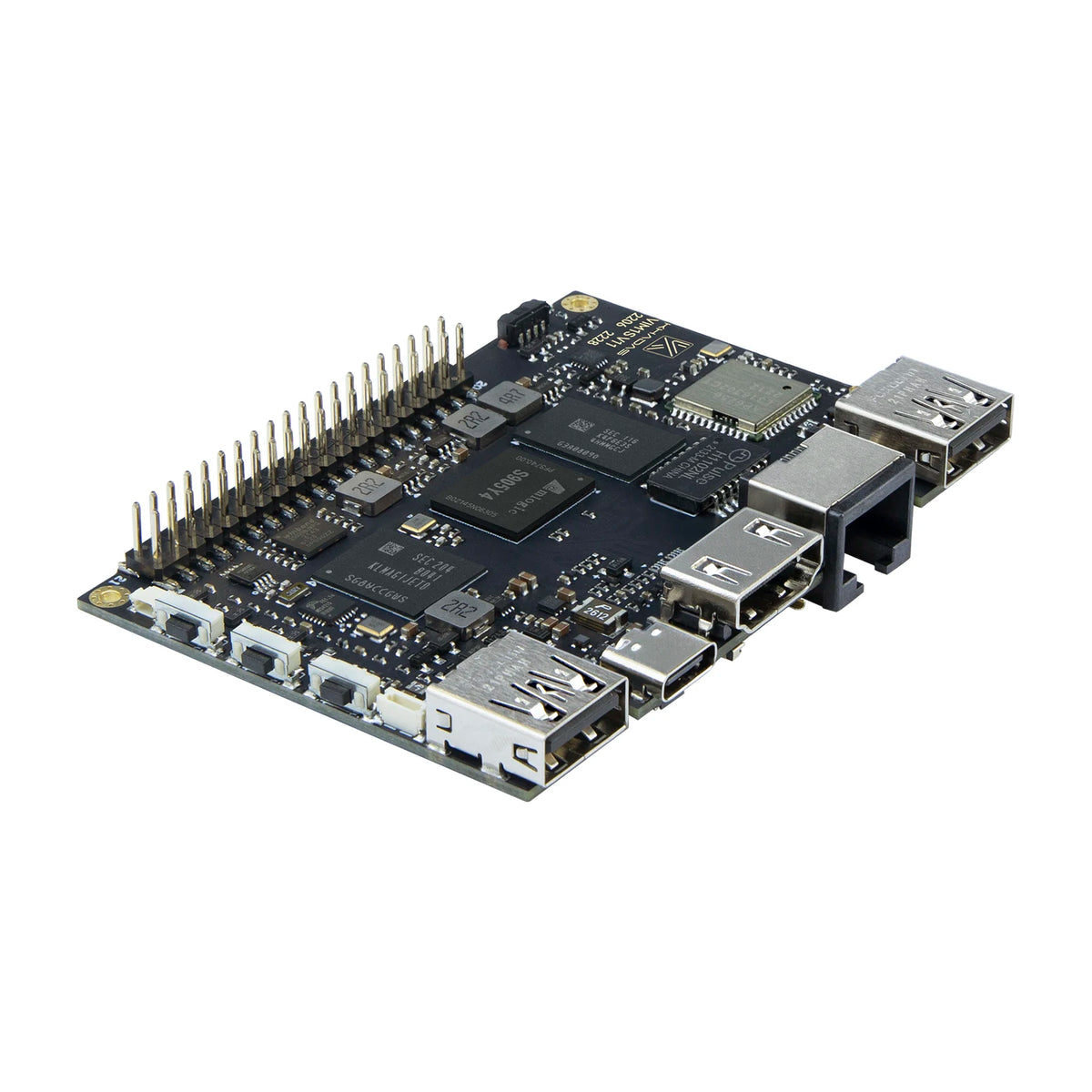

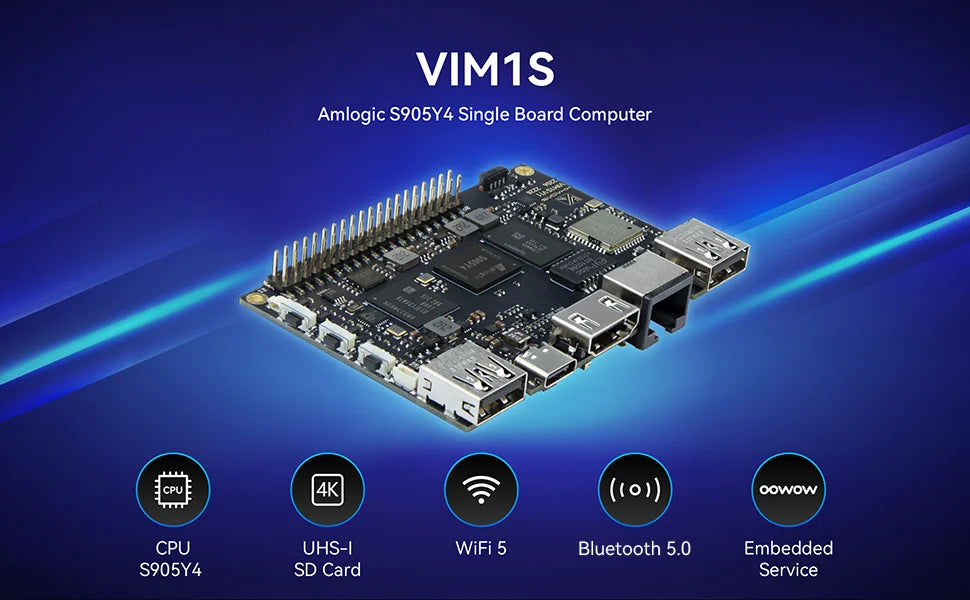

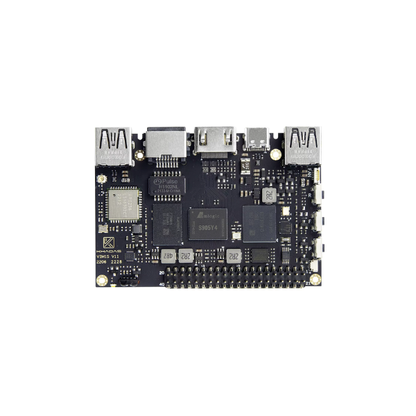

VIM1S Single Board Computer S905Y4 2GB 16GB WiFi Bluetooth

Build compact DIY, smart home and computing projects with this credit-card-sized single board computer. Powered by a 2.0GHz quad-core processor with 2GB RAM and 16GB eMMC storage, it combines versatile connectivity with 4K video capabilities in a tiny footprint.

With dual-band WiFi, Bluetooth 5.0, HDMI, USB ports and extensive GPIO connectivity, it is suited to makers, home automation projects, media applications and edge computing.

Key Features

• Quad-Core Processing: 2.0GHz ARM Cortex-A35 processor provides efficient performance for everyday computing and DIY projects.
• 2GB RAM + 16GB Storage: 2GB LPDDR4 memory and 16GB eMMC storage provide a practical foundation for applications and operating systems.
• 4K Video Support: Supports up to 4K × 2K at 60fps video decoding, including H.265 and AV1 formats.
• HDR Video Processing: Supports HDR10, HDR10+ and HLG HDR for compatible content.
• Multi-Video Decoding: Supports decoding of up to four 1080P streams at 60fps.
• Dual-Band WiFi: 802.11ac WiFi supports both 2.4GHz and 5GHz wireless networks.
• Bluetooth 5.0: Connect compatible wireless peripherals such as keyboards, mice, gamepads, speakers and other devices.

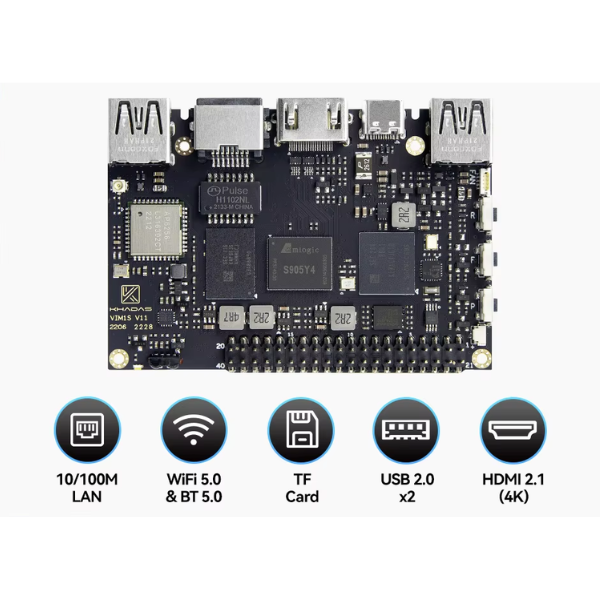

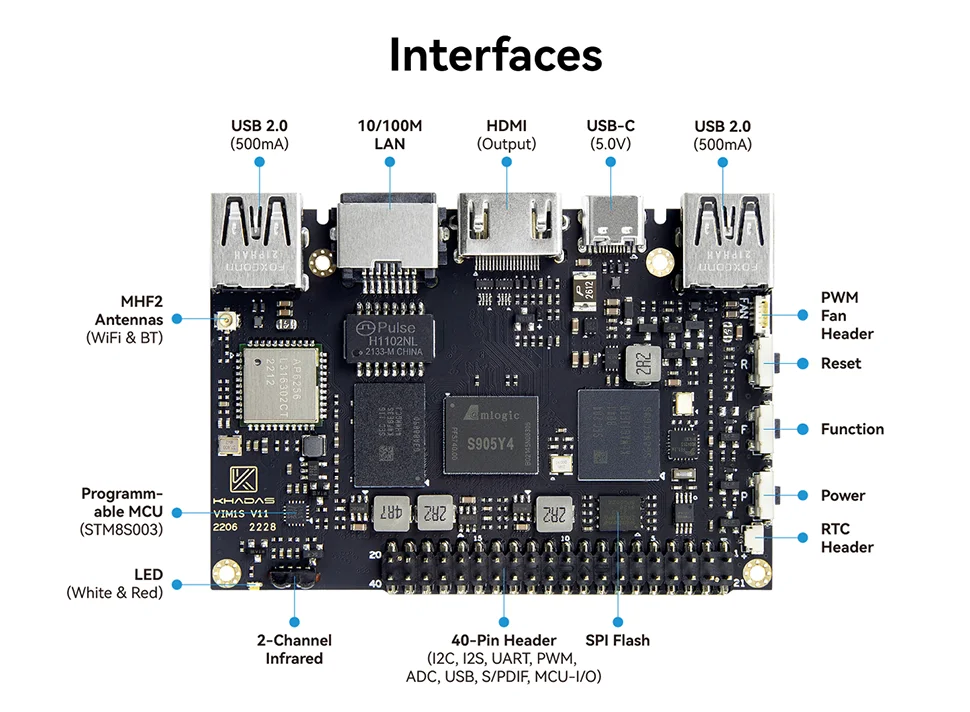

• Flexible I/O: Includes two USB 2.0 host ports, USB-C OTG, HDMI and TF card support.
• Maker-Friendly GPIO: 40-pin header and 30-pin FPC connector provide flexible expansion options for DIY electronics and automation projects.
• 10/100Mbps Ethernet: Wired networking is available for projects requiring a direct network connection.
• Compact Form Factor: Credit-card-sized board is easy to integrate into space-conscious projects and custom builds.
• Operating System Support: Compatible with Android 11 and Ubuntu 22.04.
• DIY Applications: Suitable for home automation, media projects, edge computing and custom maker builds.
• Dual-Channel IR Receiver: Provides additional options for remote-control applications.
• UHS-I TF Card Support: Expandable storage through a compatible TF card.

Specifications

• Processor: Amlogic S905Y4 Quad-Core Cortex-A35
• CPU Speed: Up to 2.0GHz
• GPU: ARM Mali-G31 MP2, up to 850MHz
• RAM: 2GB LPDDR4, 1176MHz, 32-bit
• Storage: 16GB eMMC 5.0
• SPI Flash: 32MB
• Video Output: HDMI 2.1
• Maximum Video Resolution: 4K × 2K at 60fps
• Video Decoding: AV1, VP9, H.265, H.264
• Multi-Video Decoding: Up to 4 × 1080P at 60fps
• Video Encoding: Software H.264 and VP8
• WiFi: IEEE 802.11ac/a/b/g/n, 2.4GHz/5GHz
• Bluetooth: 5.0
• Ethernet: 10/100Mbps
• USB: 2 × USB 2.0 Host
• USB-C: USB 2.0 OTG and 5V DC input
• TF Card: UHS-I support

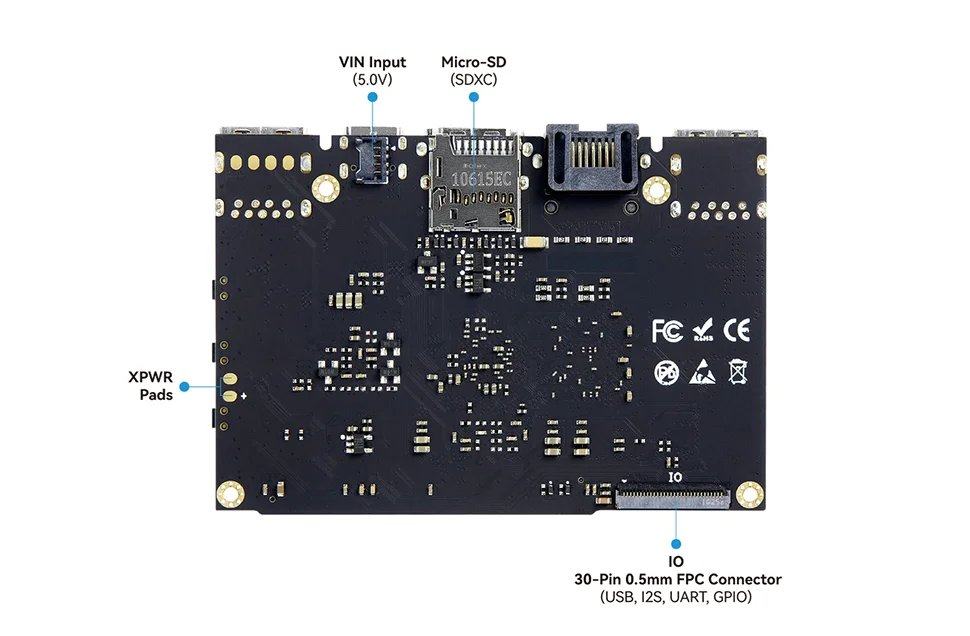

• External I/O: 40-pin 2.54mm header, 30-pin 1.0mm FPC connector
• IR Receiver: Dual-channel
• Bootloader: U-Boot

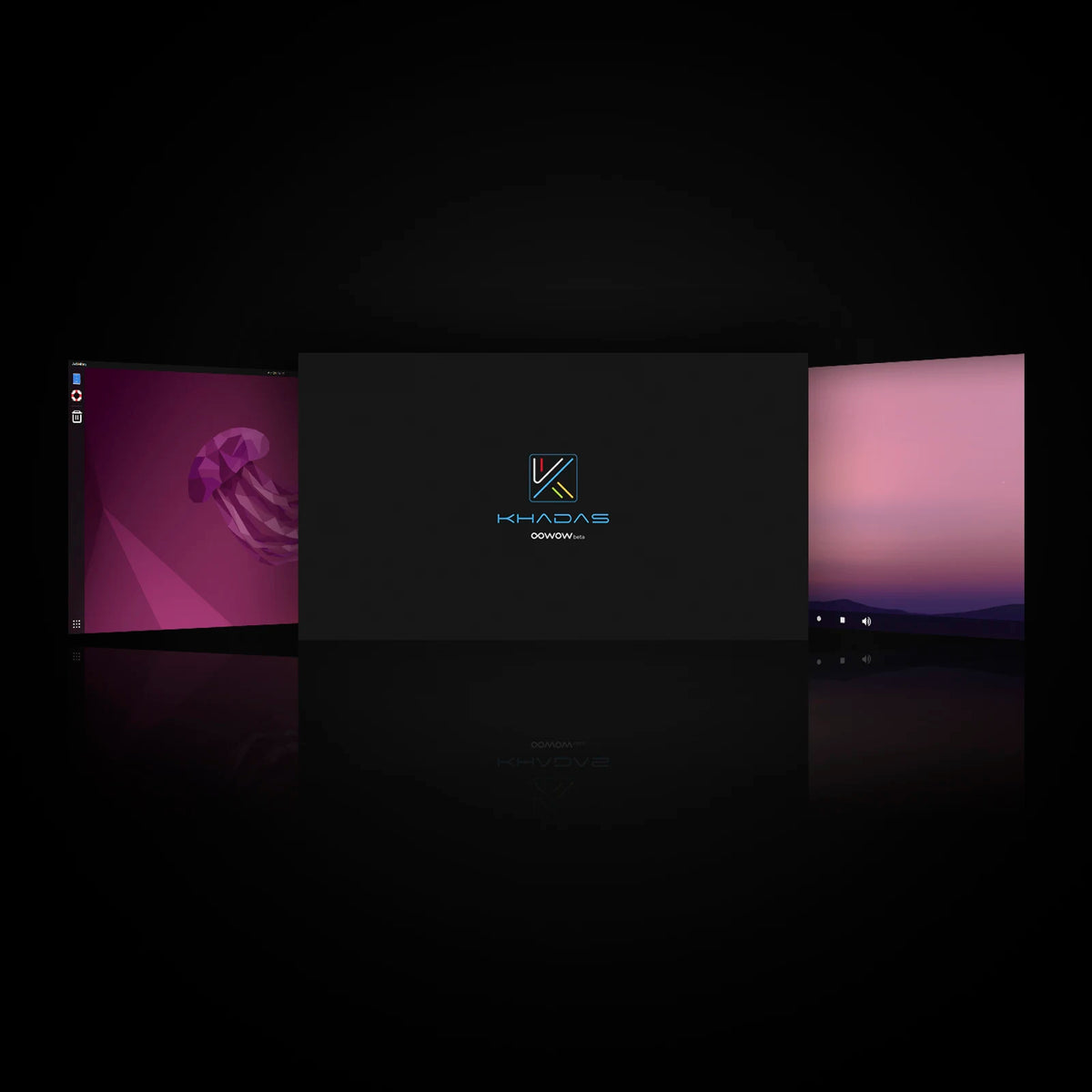

• Operating Systems: Android 11, Ubuntu 22.04
• Linux Kernel: Linux 5.4
• Board Dimensions: 82 × 58 × 13mm
• Board Weight: 27g
• Power Input: 5V/2A via USB-C

Package Contents

• 1 × Single Board Computer (VIM1S)
