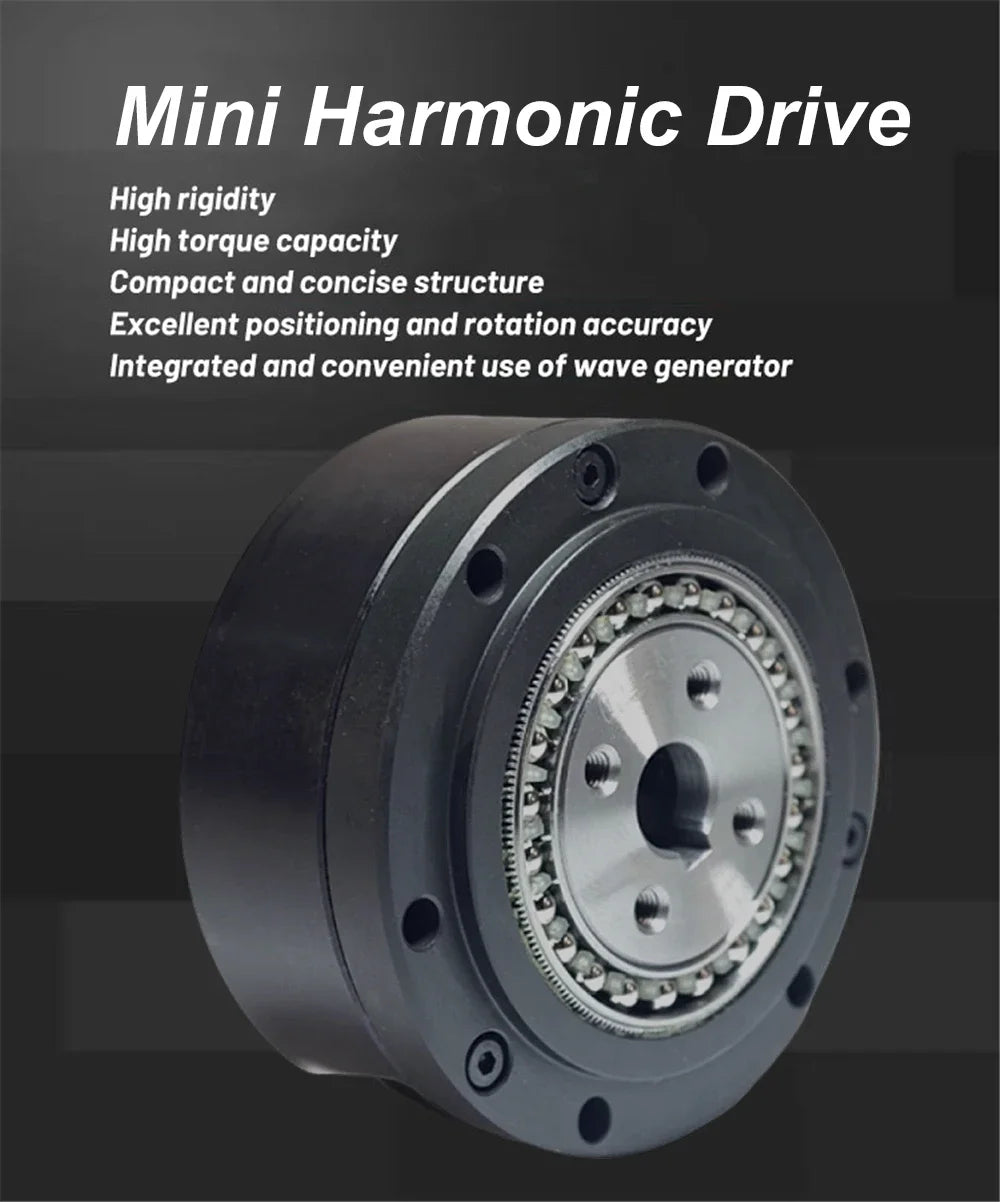

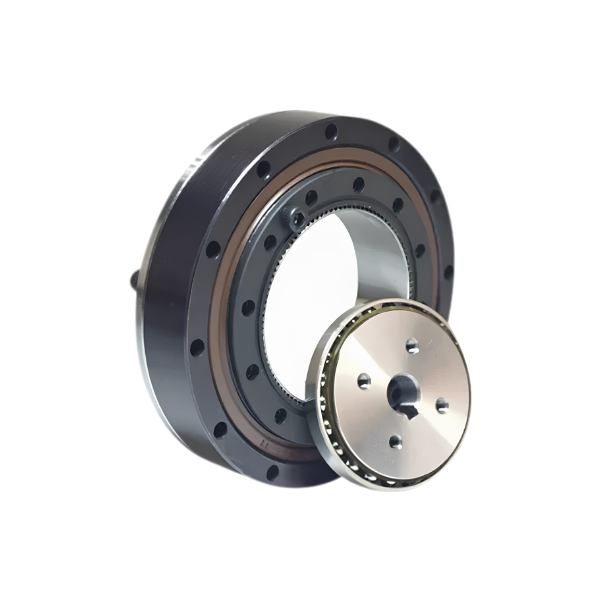

ZXD14 Mini Harmonic Gearbox 100:1 Lightweight Precision Drive

A compact high-precision harmonic gearbox designed for smooth, accurate motion in robotics and automation systems. Built for lightweight integration, it delivers stable torque transmission and ultra-fine positioning control for demanding mechanical applications.

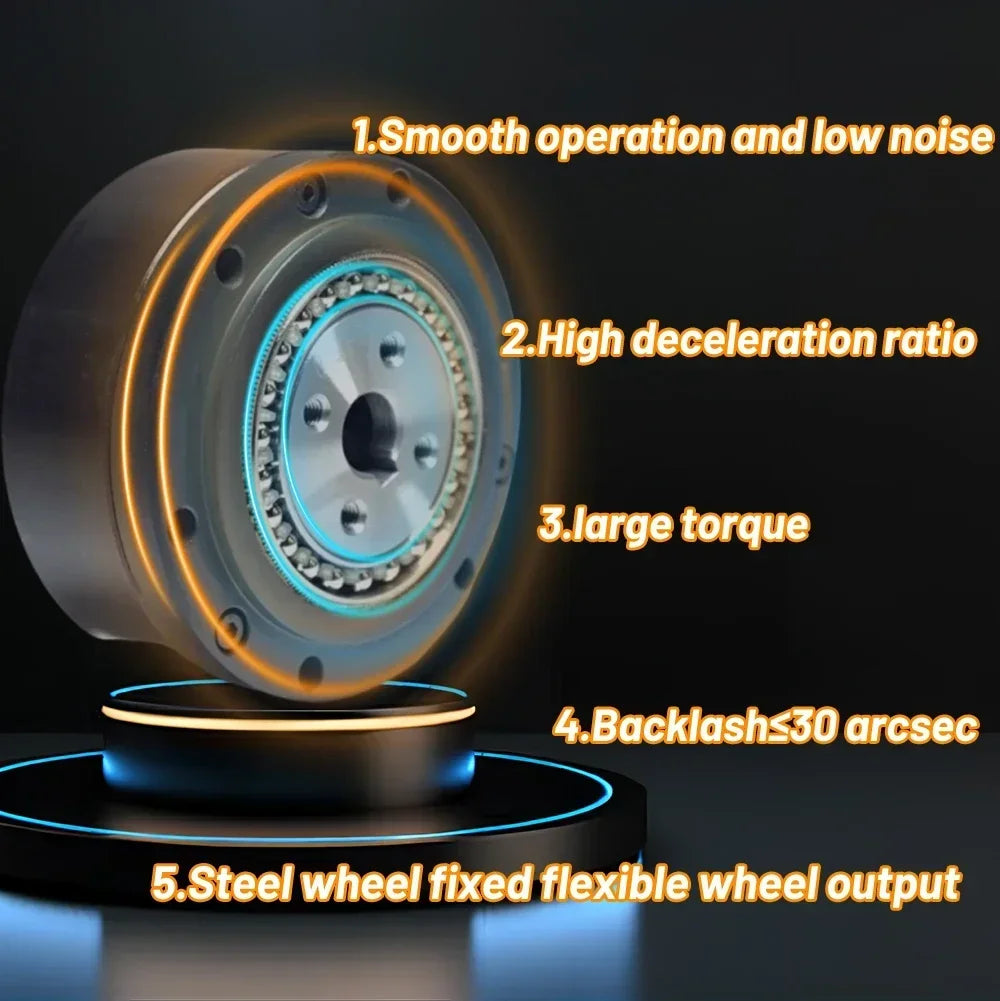

Key Features

• High-precision harmonic drive with ≤30 arcsec backlash
• Compact lightweight design for space-saving installation
• Smooth, quiet operation with minimal vibration
• High torque output in a small footprint
• Strong load capacity through multi-tooth engagement system
• Ideal for robotic joints and precision motion systems
• High efficiency for consistent long-term performance
• Designed for automation, CNC, and robotic applications

Specifications

• Model: ZXD14
• Gear Ratio: 100:1
• Backlash: ≤30 arcsec
• Gearing Type: Harmonic (strain wave)

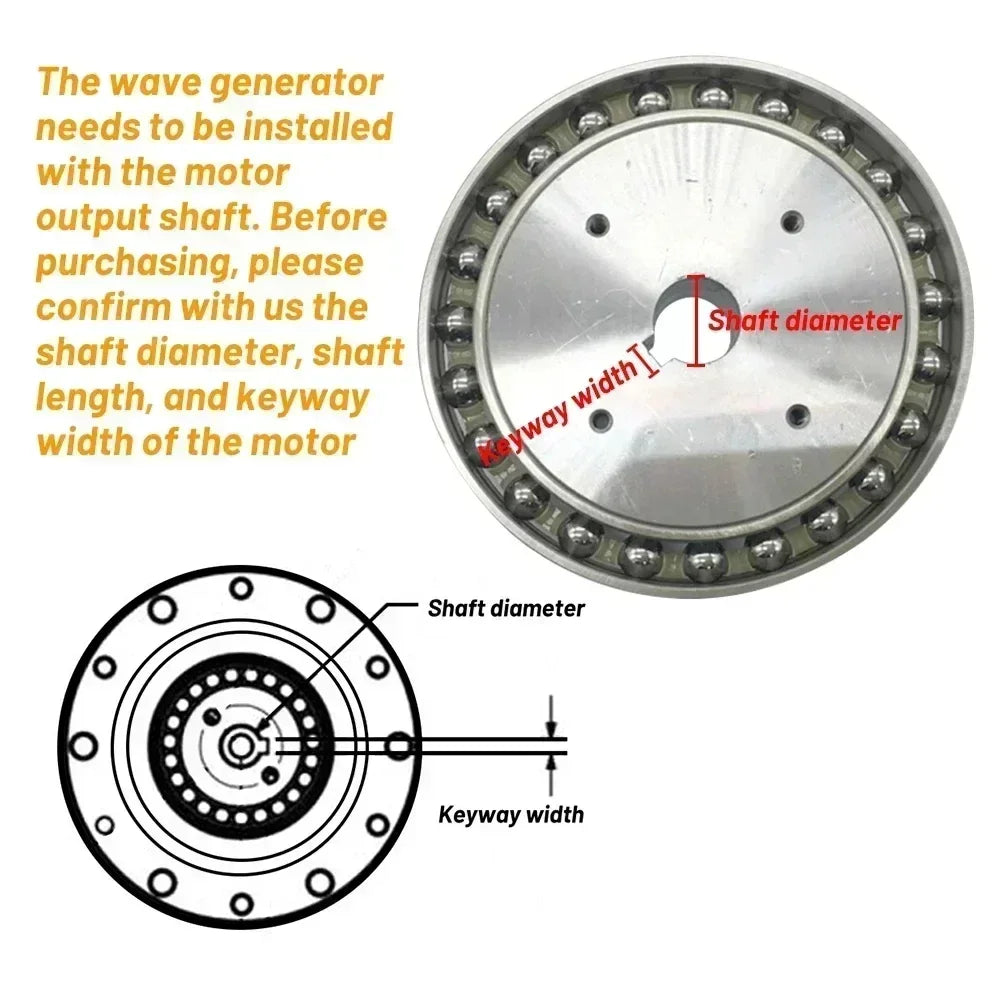

• Shaft Size: 8mm standard (11mm optional)
• Input Speed: Up to 8500 rpm (max), 3500 rpm rated
• Material: Precision alloy housing
• Weight: Lightweight industrial design
• Torque Capacity: High-precision torque output (stage dependent)

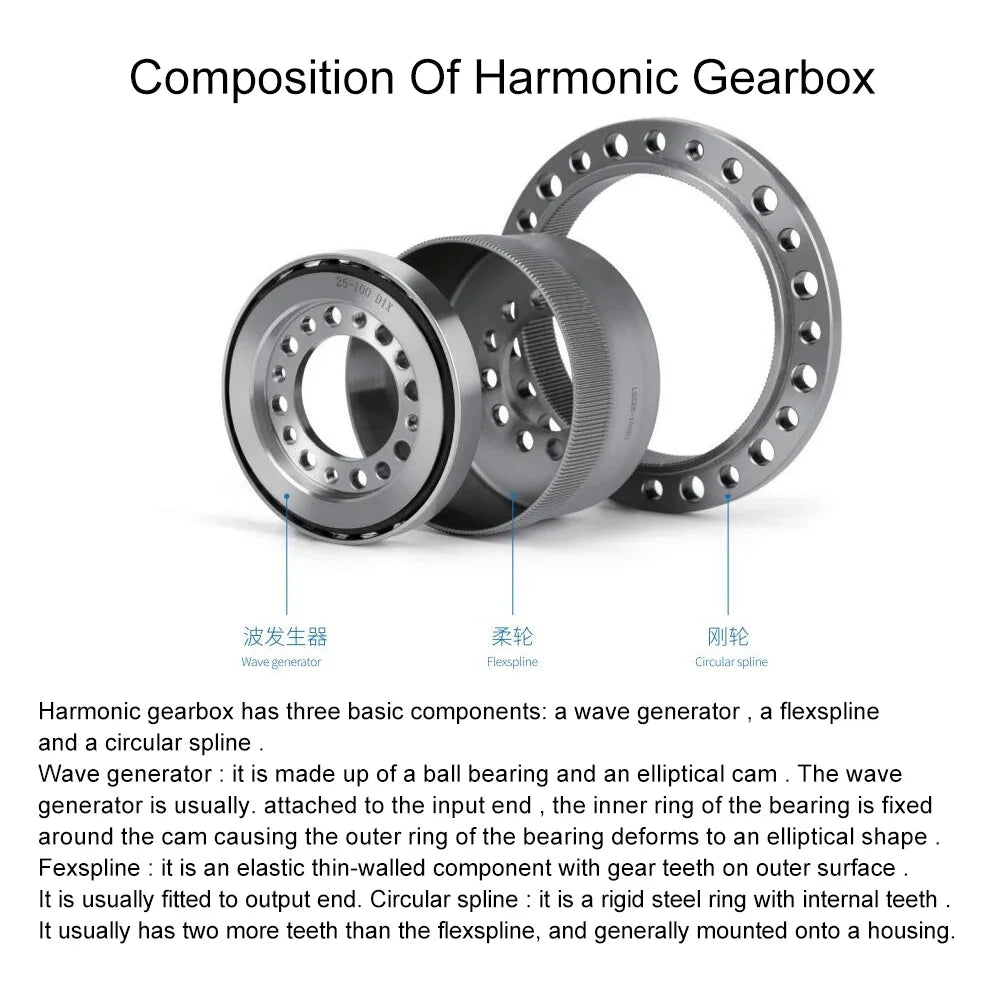

• Operating Principle: Strain wave gear transmission
• High-concerned chemical: None

Package Contents

• 1 × Harmonic Reducer (ZXD14, 100:1)

What Makes This a Smart Buy:
This gearbox combines precision, compact size, and smooth performance, making it ideal for space-constrained automation systems. Its low backlash and stable torque delivery ensure reliable accuracy in robotics and high-precision motion control applications.
